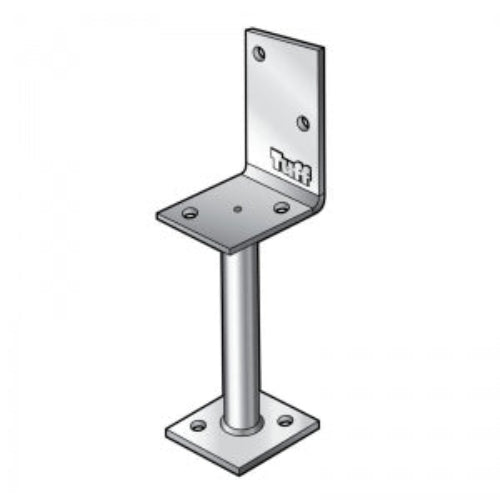

Angle Type Stirrup 90x130mm Carton of 5 and 10

Secure and straightforward mounting for pergolas, carports, and verandahs with a robust, 4mm steel angle stirrup. This unit is designed for bolting to timber decking or concrete bases, and can be set directly into concrete or used when access is limited to one side of the post.

Ideal for posts placed against walls or in tighter spaces, it offers stable installations where space is at a premium.

Key details

• Post size: 90mm (W) x 75mm (L); Shaft height: 130mm; Shaft diameter: 25mm
• Blade size: 75mm (W) x 112mm (H); Base bolt hole: Ø13.5mm; Post bolt hole: M12
• Material: 4mm steel; Finish: hot-dip galvanised
• Carton options: packs of 5 or 10
• Suitable for bolting to timber decking, concrete bases, or setting into concrete
